Import Floor Plan To Coohom

Request Body

Name	Required	Type	Description
name	false	string	floor plan name
communityName	false	string	community name
city	false	string	city
province	false	string	province
height	false	double	floor plan height in meters, default is 2.8
rooms	false	list<Room>	room list
walls	false	list<Wall>	wall list
holes	false	list<Hole>	doors and windows list
pillars	false	list<Pillar>	pillar list
flues	false	list<Flue>	flue list
beams	false	list<Beam>	beam list

Room

Name	Required	Type	Description
name	false	string	room name
roomTypeId	false	int	ID of the room type in Coohom system. enumeration. see below
position	true	Point	any point in the room (Such as the center point, should not on the wall)

Note: Rooms will be automatically constructed based on the given information of walls, pillars, doors and windows. Add room name to the room with the given room coordinates.
It is recommended to specify the room type ID, or this room will be treated as a "untitled" type in Coohom system.
Room information can be null.

enumeration for roomTypeId

roomTypeId	name
1	living room
2	corridor
3	dining room
4	bedroom
5	children room
6	study
7	kitchen
8	bathroom
9	multifunctional room
10	second bedroom
11	guest bedroom
12	elderly room
13	balcony
14	entrance
16	entrance hall
17	custom
18	storage room
19	walk-in closet
20	outdoor
21	lounge
22	guest dining room
23	terrace

Wall

Name	Required	Type	Description
start	true	Point	starting point of the wall
end	true	Point	end point of the wall
type	false	string	type of wall centerline, default is LINE. valid values are LINE, ARC, QUADRATIC_BEZIER_CURVE
bulge	false	double	bulge of the arc of a curved wall
control	false	Point	control point for the quadratic Bezier curve of a curved wall
height	false	double	wall height in meters, default height: floor plan height
thickness	false	double	wall thickness in meters , default thickness: 0.12m

Note: It is treated as a line, if there is no type, or there is type without corresponding curve information.
All curves will be fitted as quadratic Bezier curves after import.

Hole

Name	Required	Type	Description
start	true	Point	start point
end	true	Point	end point

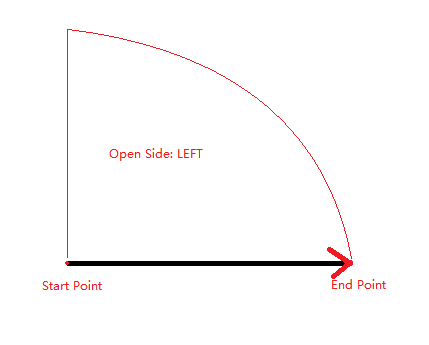

openSide	false	string	open direction, default is LEFT. valid values are LEFT, RIGHT
height	true	double	height in meters
groundClearance	true	double	height above floor in meters
type	true	string	hole type. valid values are DOOR, DOUBLE_DOOR, SLIDE_DOOR, WINDOW, BAY_WINDOW, FRENCH_WINDOW

Note: openSide is only valid for single doors, double doors and bay windows.

Pillar

Name	Required	Type	Description
polygon	true	list<Point>	outline of pillar

Note: Pillars are the same height as the floor plan.

Flue

Name	Required	Type	Description
id	false	string	id for the flue
polygon	true	list<Point>	outline of flue

Beam

Name	Required	Type	Description
start	true	Point	start point
end	true	Point	end point
height	true	double	height in meters
thickness	true	double	thickness in meters

Point

Name	Required	Type	Description
x	true	double	X-axis offset in meters
y	true	double	Y-axis offset in meters

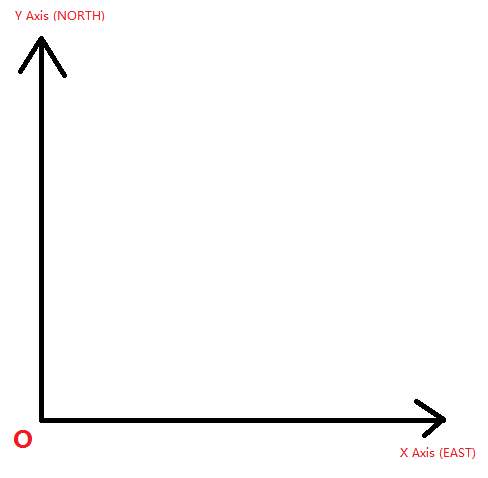

Note: The positive Y direction towards the top of the screen, and the floor plan faces north.

Response

If the import or update is successful, the code is 0, and the plan id is returned.
If the operation fails, an error code and error message will be returned.
